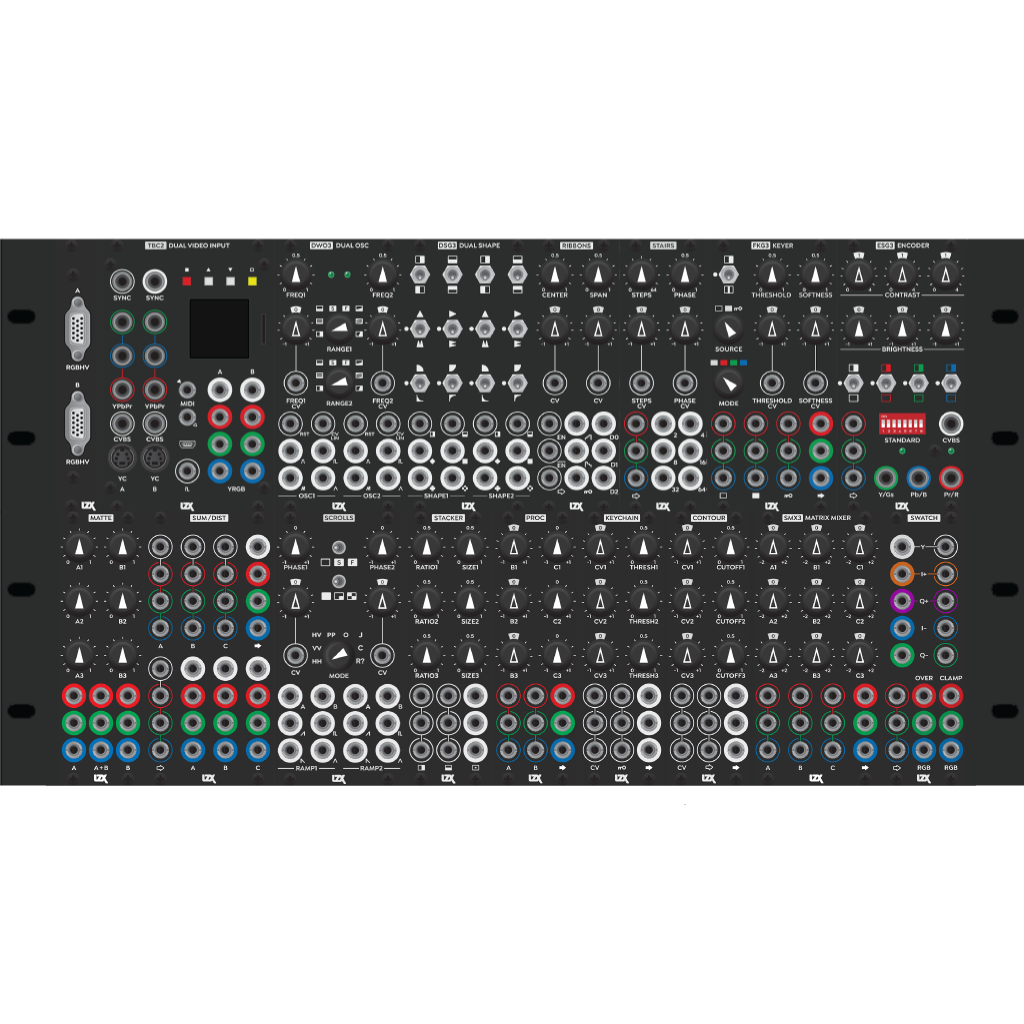

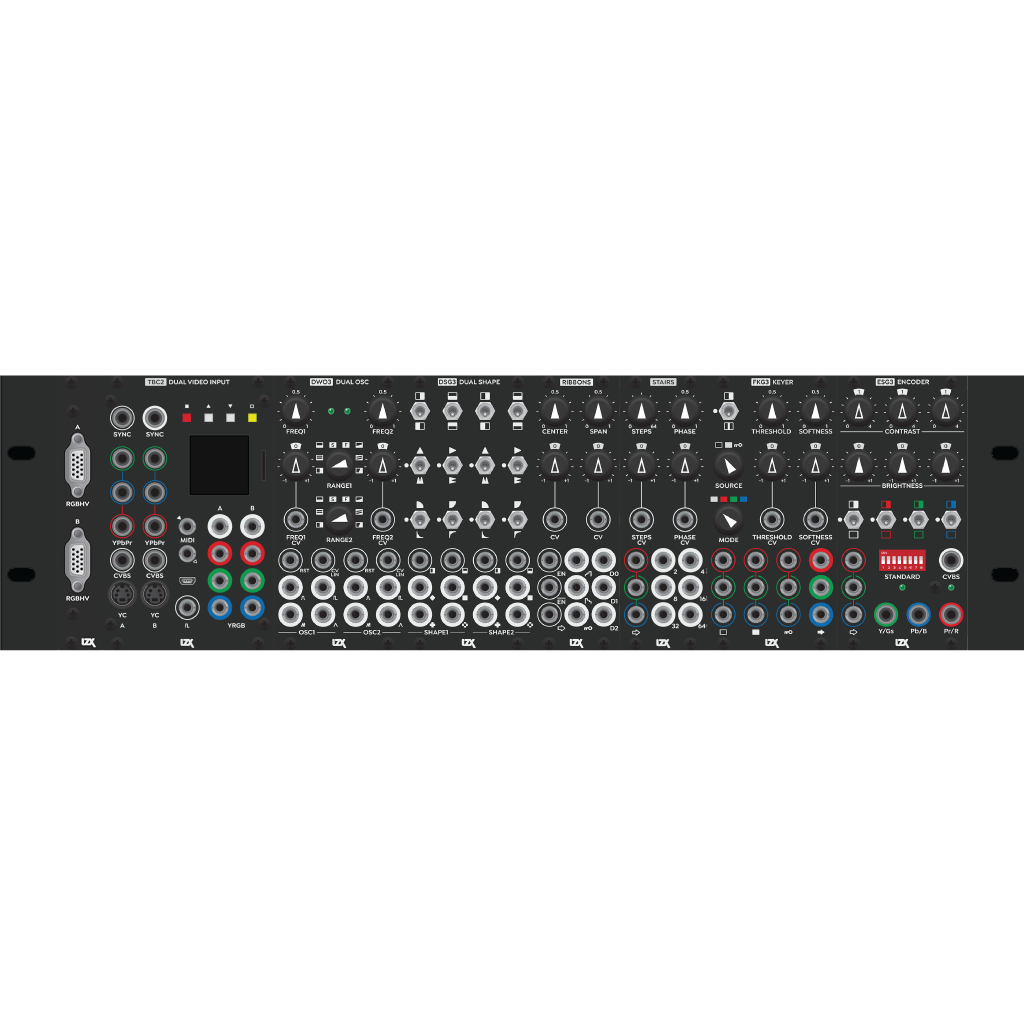

Basic System
(1) Video Sync Generator
(1) Color Video Encoder
(3) Video Waveform Generator
(1) Triple Video Fader & Key Generator
(1) Video Blending Matrix
(1) Voltage Interface I
Complex System
(1) Video Sync Generator
(1) Color Video Encoder
(8) Video Waveform Generator
(2) Triple Video Fader & Key Generator
(2) Video Blending Matrix
(2) Voltage Interface I
Minimal System
(1) Video Sync Generator
(1) Color Video Encoder
(2) Video Waveform Generator
Additional considerations for module selection
- Multiple video output channels will require additional Color Video Encoder modules
- Users with a large number of external modulation sources may need additional Voltage Interface I modules
